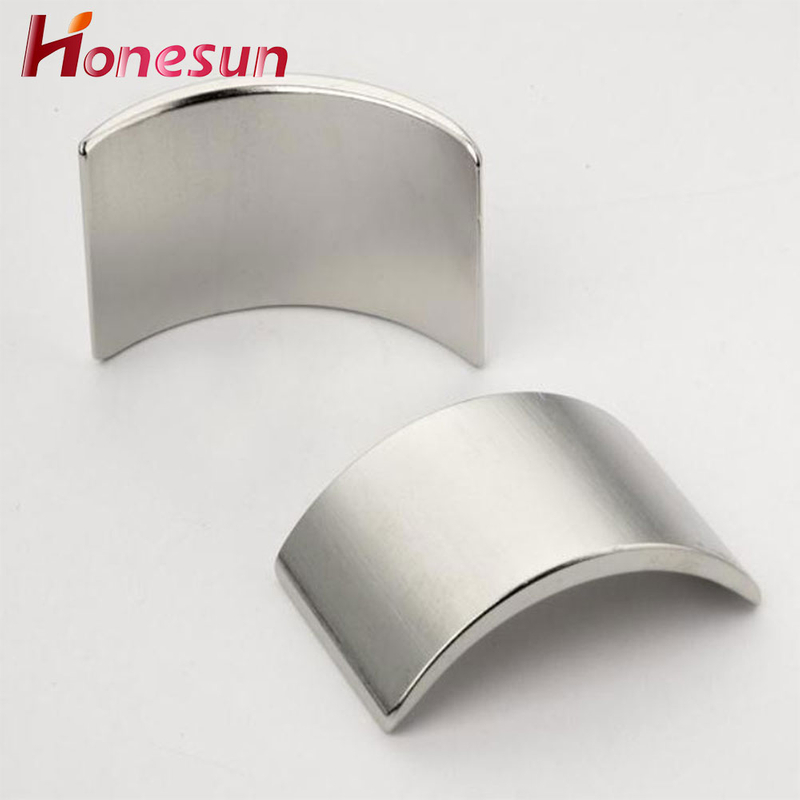

Half Ring Neodymium Magnets For Servo Motors

Share to:

Half Ring Neodymium Magnets For Servo Motors

Availability:

Quantity:



Inquire Add to Basket

Model:
HONESUN- NEODYMIUM
Brand:
HONESUN
Code:
8505111000

Half Ring Neodymium Magnets For Servo Motors

Neodymium Magnet industry is a small industry, but professional.

Find a good supplier is important for you to find a good Neodymium Magnet Supplier.

Product Name	Half Ring Neodymium Magnets For Servo Motors
Performance	Customized (N33 N35 N38 N40 N42 N45 N48 N50 N52 etc.)
Coating	Ni-Cu-Ni,Nickel Customized (Zn,Ni-Cu-Ni,Ni,Gold, Silver, Copper, Epoxy, Chrome, etc)
Shape	Customized (Block, Disc, Cylinder, Arc,Bar, Ring, Countersunk, Segment, Hook, Trapezoid, Irregular shapes, etc)
Magnetization	Diametrally Magnetized,Axially Magnetized
MOQ	10pcs
Port	NINGBO / SHANGHAI
Package	Air insulation packing
Packing size	352616cm
packing weight	15KG-21KG/carton

Hope usual details clearly for your reference.

Grade	Remanence Flux Density		Coercive				Max. Energy Density		Temp. Coefficient		Operating Temp.
	Br		HcB		HcJ		(BH)max		TK(Br) %/K	TK(Hcj) %/K	Tw max
	kGs	mT	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	TK(Br) %/K	TK(Hcj) %/K	C
N35	11.7-12.1	1170-1210	≥10.9	≥868	≥12	≥955	33-36	263-287	-0.11	-0.6	80
N38	12.1-12.5	1210-1250	≥11.3	≥899	≥12	≥955	36-39	287-310	-0.11	-0.6	80
N40	12.4-12.8	1240-1280	≥11.6	≥923	≥12	≥955	38-41	302-326	-0.11	-0.6	80
N42	12.8-13.2	1280-1320	≥11.6	≥923	≥12	≥955	40-43	318-342	-0.11	-0.6	80
N45	13.2-13.8	1320-1380	≥11.0	≥876	≥12	≥955	43-46	342-366	-0.11	-0.6	80
N48	13.8-14.2	1380-1420	≥10.5	≥835	≥11	≥876	46-49	366-390	-0.11	-0.6	80
N50	14.0-14.5	1400-1450	≥10.0	≥835	≥11	≥876	47-51	376-408	-0.11	-0.6	60
N52	14.3-14.8	1430-1480	≥10.0	≥796	≥11	≥876	50-53	398-422	-0.11	-0.6	60
35M	11.7-12.1	1170-1210	≥10.9	≥868	≥14	≥1120	33-36	263-287	-0.01	-0.6	100
38M	12.1-12.5	1210-1250	≥11.3	≥899	≥14	≥1120	36-39	287-310	-0.01	-0.6	100
40M	12.4-12.8	1240-1280	≥11.6	≥923	≥14	≥1120	38-41	302-326	-0.01	-0.6	100
42M	12.8-13.2	1280-1320	≥11.6	≥923	≥14	≥1120	40-43	318-342	-0.01	-0.6	100
45M	13.2-13.8	1320-1380	≥11.0	≥876	≥14	≥1120	43-46	342-366	-0.01	-0.6	100
48M	13.7-14.3	1370-1430	≥13.0	≥1035	≥14	≥1120	45-49	360-392	-0.01	-0.6	100
50M	14.0-14.5	1400-1450	≥13.0	≥1033	≥14	≥1114	48-51	382-406	-0.01	-0.6	100
35H	11.7-12.1	1170-1210	≥10.9	≥868	≥17	≥1353	33-36	263-287	-0.01	-0.056	120
38H	12.1-12.5	1210-1250	≥11.3	≥899	≥17	≥1353	36-39	287-310	-0.01	-0.056	120
40H	12.4-12.8	1240-1280	≥11.6	≥923	≥17	≥1353	38-41	302-326	-0.01	-0.056	120
42H	12.8-13.2	1280-1320	≥12.0	≥955	≥17	≥1353	40-43	318-342	-0.01	-0.056	120
45H	13.2-13.6	1320-1360	≥12.5	≥1000	≥17	≥1353	43-47	344-376	-0.01	-0.056	120
48H	13.7-14.3	1370-1430	≥12.5	≥1000	≥17	≥1353	46-49	366-390	-0.01	-0.056	120
33SH	11.3-11.7	1130-1170	≥10.6	≥844	≥20	≥1592	31-34	247-272	-0.095	-0.056	150
35SH	11.7-12.1	1170-1210	≥11.0	≥876	≥20	≥1592	33-36	263-287	-0.095	-0.056	150
38SH	12.1-12.5	1210-1250	≥11.4	≥907	≥20	≥1592	36-39	287-310	-0.095	-0.056	150
40SH	12.4-12.8	1240-1280	≥11.8	≥939	≥20	≥1592	38-41	302-326	-0.095	-0.056	150
42SH	13.0-13.5	1300-1350	≥12.0	≥963	≥20	≥1600	39-43	312-344	-0.095	-0.056	150
45SH	13.2-13.8	1320-1380	≥12.6	≥1003	≥20	≥1592	43-46	342-366	-0.095	-0.056	150
30UH	10.8-11.3	1080-1130	≥10.2	≥812	≥25	≥1990	28-31	223-247	-0.09	-0.056	180
33UH	11.3-11.7	1130-1170	≥10.7	≥852	≥25	≥1990	31-34	247-271	-0.09	-0.056	180
35UH	11.7-12.1	1170-1210	≥11.0	≥876	≥25	≥1990	33-36	263-287	-0.09	-0.056	180
38UH	12.2-12.5	1220-1250	≥11.0	≥876	≥25	≥1990	36-39	287-310	-0.09	-0.056	180
40UH	12.5-12.8	1250-1280	≥11.3	≥899	≥25	≥1990	38-41	302-326	-0.09	-0.056	180
30EH	10.8-11.3	1080-1130	≥10.2	≥812	≥30	≥2388	28-31	223-247	-0.085	-0.056	200
33EH	11.3-11.7	1140-1180	≥10.5	≥835	≥30	≥2400	31-34	248-272	-0.085	-0.056	200
35EH	11.7-12.1	1170-1210	≥11.0	≥876	≥30	≥2400	33-36	263-287	-0.085	-0.056	200
38EH	12.2-12.5	1220-1250	≥11.3	≥899	≥30	≥2388	36-39	287-310	-0.085	-0.056	200

More products:

How to place order:

process

Our factory:

FAQ:

1.How fast can I get a reply?

You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).

2.Can I get free samples?

Free samples are available at warehouse. However it may take minimum 7 days for production if your size is not on our stock list.

3.Are you able to offer best price?

Magnets are functional products,the cost depend on how strong the materials you need. We believe the most suitable is the best, therefore HONESUN keen to offer best prices to meet your targets.

4.Are you able to provide best quality?

At our company you receive products under guarantee of ISO9001systems.

5.What are your best lead time?

Immediately shipments are available for stock magnets.

For fresh materials,we need 7-15 days for production.

6.How can you sure that my money is safe with you?

As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group.

Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
