HONESUN- FERRITE
HONESUN
8505190090
Description: Large Barium Ferrite Ring Magnet For Speaker
Working Temperature: 250°C
Magnet Shape: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized shapes for Strong ferrite magnet are available.
Technology Advantage: Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property.
Delivery Advantage: The lead time must be 25 days quicker than industry average because of more flexible machine process control.
Price Advantage: The price is 5-10% cheaper than industry average because of an excellent and efficient management system.
Application: Strong Ferrite Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, common daily use, and so on.
| Grade | Br | HcB | Hcj | (BH)max | ||||
| KGs | mT | kOe | Ka/m | kOe | Ka/m | MGOe | Kj/m³ | |
| Y10T | 2.00~2.35 | 200~235 | 1.57~2.01 | 125~160 | 2.64~3.52 | 210~280 | 0.81~1.19 | 6.5~9.5 |
| Y25 | 3.60~4.00 | 360~400 | 1.70~2.20 | 135~175 | 1.76~2.51 | 140~200 | 2.80~3.50 | 22.5~28.0 |
| Y30 | 3.70~4.00 | 370~400 | 2.20~2.64 | 175~210 | 2.26~2.77 | 180~220 | 3.30~3.77 | 26.0~30.0 |
| Y30BH | 3.80~4.00 | 380~400 | 2.80~3.46 | 223~275 | 2.85~3.65 | 227~290 | 3.40~4.10 | 27.0~32.5 |
| Y33 | 4.00~4.30 | 400~430 | 2.76~3.14 | 220~250 | 2.83~3.20 | 225~255 | 3.96~4.40 | 31.5~35.0 |
| Y35 | 4.00~4.20 | 400~420 | 2.20~2.70 | 175~222 | 2.26~2.80 | 180~241 | 3.80~4.20 | 30.0~33.0 |
| Y35AH | 400~410 | 4.00~4.10 | 2.60~2.8 | 200~225 | 2.7~2.90 | 210~230 | 3.90~4.10 | 31.0~33.0 |
| Y36 | 430~450 | 4.30~4.50 | 3.10~280 | 240~275 | 3.14~3.42 | 250~270 | 4.40~4.80 | 35.0~38.0 |
| Y38 | 440~460 | 4.40~4.60 | 3.58~3.83 | 285~305 | 3.69~3.89 | 294~310 | 4.60~5.10 | 36.6~40.6 |
| Y40 | 440~460 | 4.40~4.60 | 4.15~4.45 | 330~354 | 4.27~4.52 | 340~360 | 4.70~5.20 | 37.6~41.8 |

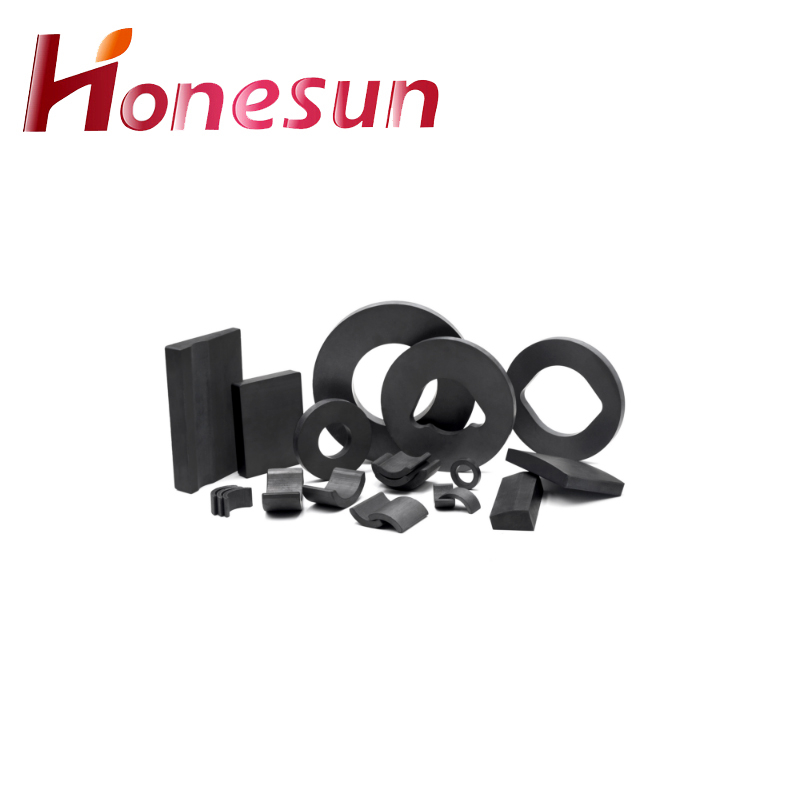

Some products pictures as below for your reference:
Other types for your reference:
Payment terms: L/C, T/T, West Union, Paypal are acceptable.
Production time: If for any reason there is a delay, we will contact you with an estimate of the revised delivery date.
Delivery: Goods will be sent to the address given by you in your order and stated in the Order Confirmation.
FAQ:
1.How fast can I get a reply?
You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).
2.Can I get free samples?
Free samples are available at warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3.Are you able to offer best price?
Magnets are functional products,the cost depend on how strong the materials you need. We believe the most suitable is the best, therefore HONESUN keen to offer best prices to meet your targets.
4.Are you able to provide best quality?
At our company you receive products under guarantee of ISO9001systems.
5.What are your best lead time?
Immediately shipments are available for stock magnets. For fresh materials,we need 7-15 days for production.
6.How can you sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
Description: Large Barium Ferrite Ring Magnet For Speaker
Working Temperature: 250°C
Magnet Shape: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized shapes for Strong ferrite magnet are available.
Technology Advantage: Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property.
Delivery Advantage: The lead time must be 25 days quicker than industry average because of more flexible machine process control.
Price Advantage: The price is 5-10% cheaper than industry average because of an excellent and efficient management system.
Application: Strong Ferrite Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, common daily use, and so on.
| Grade | Br | HcB | Hcj | (BH)max | ||||
| KGs | mT | kOe | Ka/m | kOe | Ka/m | MGOe | Kj/m³ | |
| Y10T | 2.00~2.35 | 200~235 | 1.57~2.01 | 125~160 | 2.64~3.52 | 210~280 | 0.81~1.19 | 6.5~9.5 |
| Y25 | 3.60~4.00 | 360~400 | 1.70~2.20 | 135~175 | 1.76~2.51 | 140~200 | 2.80~3.50 | 22.5~28.0 |
| Y30 | 3.70~4.00 | 370~400 | 2.20~2.64 | 175~210 | 2.26~2.77 | 180~220 | 3.30~3.77 | 26.0~30.0 |
| Y30BH | 3.80~4.00 | 380~400 | 2.80~3.46 | 223~275 | 2.85~3.65 | 227~290 | 3.40~4.10 | 27.0~32.5 |
| Y33 | 4.00~4.30 | 400~430 | 2.76~3.14 | 220~250 | 2.83~3.20 | 225~255 | 3.96~4.40 | 31.5~35.0 |
| Y35 | 4.00~4.20 | 400~420 | 2.20~2.70 | 175~222 | 2.26~2.80 | 180~241 | 3.80~4.20 | 30.0~33.0 |
| Y35AH | 400~410 | 4.00~4.10 | 2.60~2.8 | 200~225 | 2.7~2.90 | 210~230 | 3.90~4.10 | 31.0~33.0 |
| Y36 | 430~450 | 4.30~4.50 | 3.10~280 | 240~275 | 3.14~3.42 | 250~270 | 4.40~4.80 | 35.0~38.0 |
| Y38 | 440~460 | 4.40~4.60 | 3.58~3.83 | 285~305 | 3.69~3.89 | 294~310 | 4.60~5.10 | 36.6~40.6 |
| Y40 | 440~460 | 4.40~4.60 | 4.15~4.45 | 330~354 | 4.27~4.52 | 340~360 | 4.70~5.20 | 37.6~41.8 |
Some products pictures as below for your reference:
Other types for your reference:
Payment terms: L/C, T/T, West Union, Paypal are acceptable.
Production time: If for any reason there is a delay, we will contact you with an estimate of the revised delivery date.
Delivery: Goods will be sent to the address given by you in your order and stated in the Order Confirmation.
FAQ:
1.How fast can I get a reply?
You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).
2.Can I get free samples?
Free samples are available at warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3.Are you able to offer best price?
Magnets are functional products,the cost depend on how strong the materials you need. We believe the most suitable is the best, therefore HONESUN keen to offer best prices to meet your targets.
4.Are you able to provide best quality?
At our company you receive products under guarantee of ISO9001systems.
5.What are your best lead time?
Immediately shipments are available for stock magnets. For fresh materials,we need 7-15 days for production.
6.How can you sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
Honesun Industrial Co., Ltd. focuses on designing, researching, developing, manufacturing and selling Magnets and Magnetic Assemblies. With more than 15 years' rich experience and considerate services.we have been recognized as a reliable.
